F-Series Truck

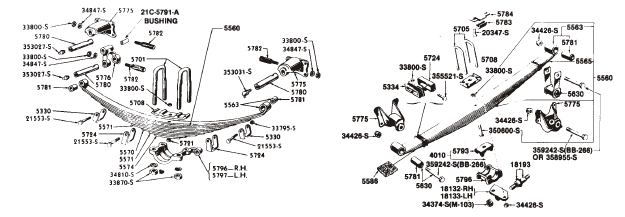

Spring Shackles


7C-5300-S     Front Spring Shackle kit - for both springs F-1, F-2, F-3 Includes:


(4) 21C-5465 pins;
(2) 7RC-5465 pins;
(4) 21C-5348 bushings;
(4) 7RC-5334


bushings 1948-52     kit 55.00


BAAA-5300-S     Front Spring Shackle Kit for both springs - F-100 & F-250 Includes:


(4) 21C-5348-A bushings;
(2) 21C-5344-A bushings


(6) 21C-5465 pins 1953-56     kit 55.00


21C-5310     New Remanufactured Front Spring 1942-52     ea. 95.00


TAAA-5310    New Remanufactured Front Spring 1953-56     ea. 95.00


21C-5560     New Remanufactured Rear Spring 1942-52     ea. 140.00


TAAA-5560    New Remanufactured Rear Spring 1953-56     ea. 140.00


7RC-5334     Front Bracket Bushings - 4 required 1948-52     ea. 3.00


7RC-5335     Front Hanger - F-1, F-2, F-3 1948-52     ea. 25.00


TAAA-5335     Front Hanger - F-100 & F-250 1953-56     ea. 25.00


7RC-5340     Rear Hanger - F-1, F-2, F-3 1948-52       ea. 30.00


B5C-5340-C     Rear Hanger - F-100 & F-250 1953-56     ea. 30.00




21C-5344-A     Front Bracket Bushing - 2 required F-100 & F-250 1953-56     ea. 5.00




21C-5348-A     Spring Shackle Bushing - 4 required F-1, F-3, F-100 & F-250 1948-56     ea. 5.00


B3C-5455-A     Front Spring U-Bolt - F-1 & F-100 1942-56     ea. 5.00


21C-5465     Stud - Front Spring 4 required F-1 F-2, F-3 1948-52     ea. 4.50


21C-5465    6 required - F-100 & F-250 1953-56     ea. 4.50




7RC-5465     Stud - 2 required - F-1, F-2, F-3 1948-52     ea. 5.00



7RC-5468     Front Spring Shackle Bar - Inner 1948-56     ea. 5.00


7RC-5469     Front Spring Shackle Bar - Outer F-1, F-2 1948-52     ea. 5.00


B5C-5469     Front Spring Shackle Bar - Outer F-100 & F-250 1953-56     ea. 5.00


21C-5701-C     Rear Spring U-Bolt - 4 per vehicle 1942-56     ea. 5.00


21C-5775     Hanger - F-1 1942-52     ea. 35.00


82Y-5775     Hanger - F-2 1940-52     ea. 35.00


21C-5776     Swing Hanger- F-1 1942-52     ea. 35.00


59Y-5776     Swing Hanger - 3/4 ton & 1 ton F-2 & F-3 1942-52     ea. 5.00


TAAA-5776-A     Swing Hanger - 1/2 ton - F-100 1953-56     ea. 35.00


TBAA-5776-A     Swing Hanger - F-250 & F-350 1953-56     ea. 35.00


21C-5780     Pin - requires 6 - F-1 & F-100 1942-56     ea. 4.00


59Y-5780     Pin - F-2, F-3 & F-350 1942-56     ea. 7.00


21C-5781-A     Bushing Spring - requires 4 F-1 & F-100 1942-56     ea. 6.00


59Y-5781-A     Bushing Main Leaf - F-2, F-3 & F-100 1942-56     ea. 11.00


 82Y-5782     Hanger Pin - F-2, F-3 & F-100 1942-56     ea. 1.50


O1Y-5785     Hanger - F-2 1940-52     ea. 35.00


21C-5791-A     Bushing Spring Shackle - 1/2 ton need 2 - F-1 & F-100 1942-56     ea. 5.00


61-5791-A     Bushing Spring Shackle Hanger 3/4 ton & 1 ton - need 4 1942-56     ea. 5.00




7C-5630     Rear Spring Shackle Kit for both rear springs Includes:

(6) 21C-5780 pins;

(6) 82Y-5782 pins

(4) 21C-5781-A bushings;

(2) 21C-5791-A bushings;

 Fits: 1/2 ton pickup 1948-56     kit 55.00
